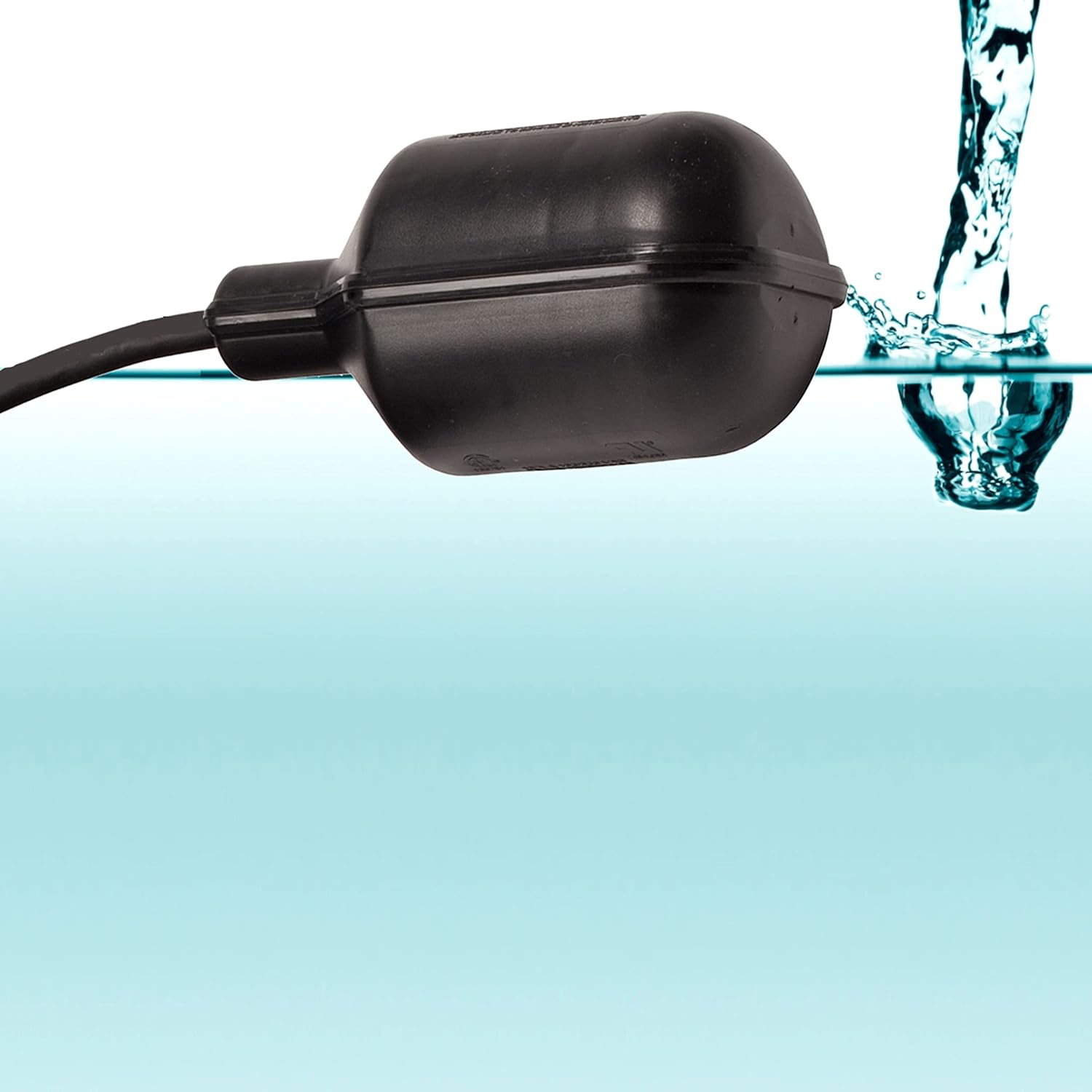

Little Giant CFST, 5 Amp, 115/230 Volt, 50/60 Hz Pump Down Control Float Switch for use with Control Panels with or without an Alarm, 20-Foot Lead Wires (Plugless), Black, 950267
Product details
| Management number | 216534861 | Release Date | 2026/04/19 | List Price | $17.98 | Model Number | 216534861 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Tethered narrow-angle, normally open control float switch is designed to work with a control panel (not included) with or without an alarm to provide automatic control of a pump in water and sewage effluent applications.Must be used with a control panel such as Little Giant's Simplex and Duplex control panels (not included). Compatible with the following Little Giant and Franklin Electric products:- Little Giant 513258 - 1221W120H6A17A Duplex Indoor/Outdoor Alarm System & Pump Control- Little Giant 513267 - 1121W120H17A Simplex Alarm System/Pump Control- Franklin Electric 515354 - A-SF230CBG-215 Control Panel for IGP manual grinder series- Franklin Electric 515355 - 1026540 Duplex Control Panel- Similar control panels are also acceptable. Specifications: 5.0 Amps, 125/250 VAC, 50/60 Hz. This switch is not recommended for controlling electrical loads less than 100 milliamps, 12 VAC and non-arcing electric loads. Temperature rating: 140°F. UL recognized/CSA certified.

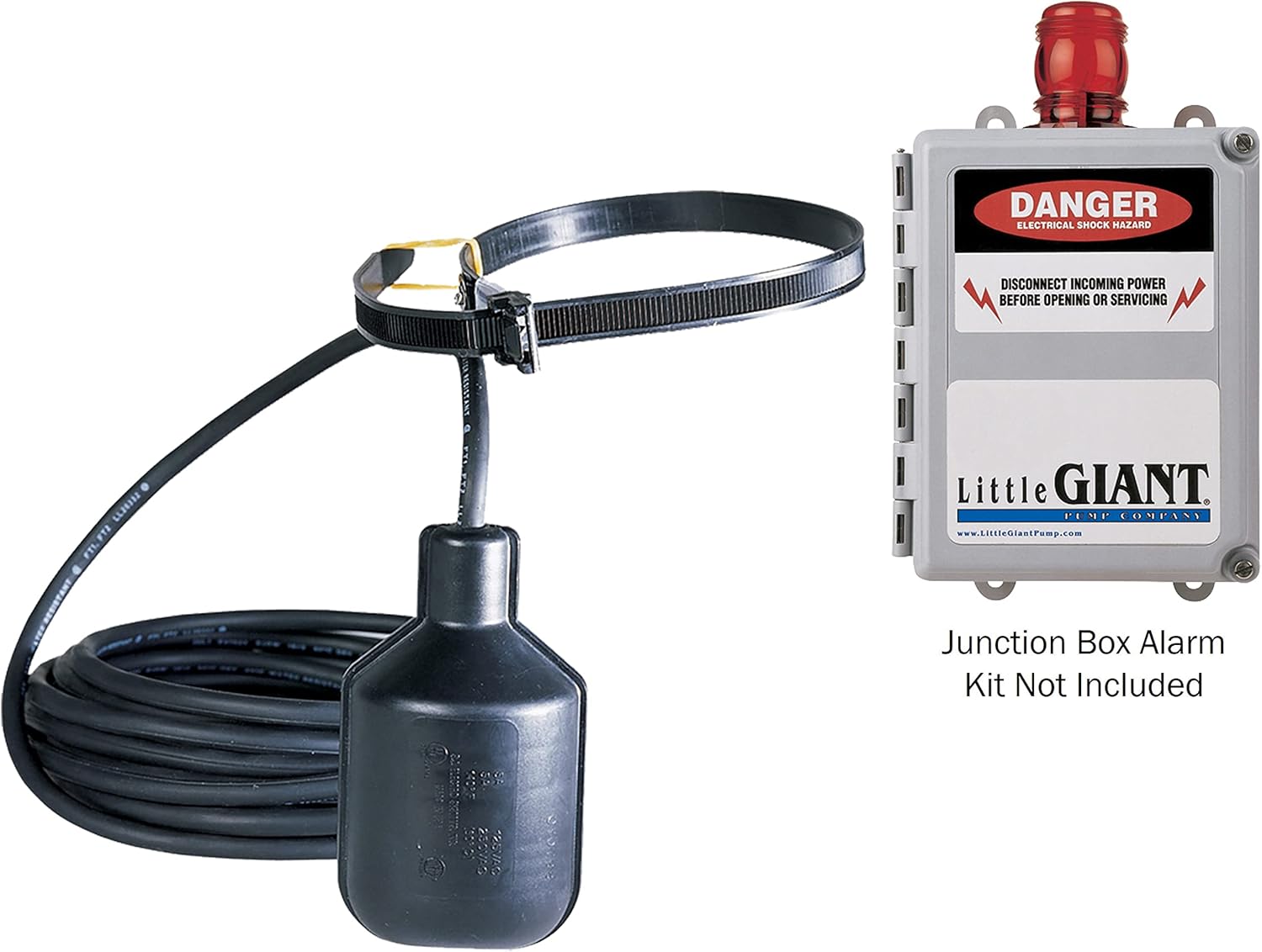

- REQUIRES A CONTROL PANEL: such as Little Giant and Franklin Electric Simplex and Duplex control panels (not included) used to accurately monitor liquid levels in sewage and non-potable water applications
- TYPE: Tethered, narrow-angle, normally open, pump down control float switch
- FEATURES mechanically activated, non-mercury, snap-action contacts sealed in a high-impact, corrosion resistant, polypropylene float housing
- PUMP DOWN: switch activates (closes) when the float tips slightly above horizontal and turns off (opens) when the float drops below the horizontal level
- SPECIFICATIONS: 5.0 Amps, 115/230 Volts, 50/60 Hz, 20-Ft. Cord, cable clamp included; UL and CSA safety approvals
| UPC | 010121502673 |
|---|---|
| Color | Black |
| Brand Name | Little Giant |
| Unit Count | 1.0 Count |
| Item Weight | 1.6 Pounds |
| Manufacturer | Franklin Electric Co., Inc. |
| Model Number | 950267 |
| Power Source | Corded Electric |
| Material Type | Polypropylene (PP) |
| Product Style | Control float switch |
| Item Type Name | CFST 115/230 Volt Control Float Switch (Plugless) for Control Panels and Alarms with 20-Ft. Cord |
| Included Components | float switch, instruction sheet, nylon ty-rap |
| Maximum Lifting Height | 20 Feet |
| Item Dimensions L x W x H | 3.56"L x 2.75"W x 2.75"H |
| Manufacturer Warranty Description | 1-year manufacturer's warranty |
| Global Trade Identification Number | 00010121502673, 01012150267300 |
