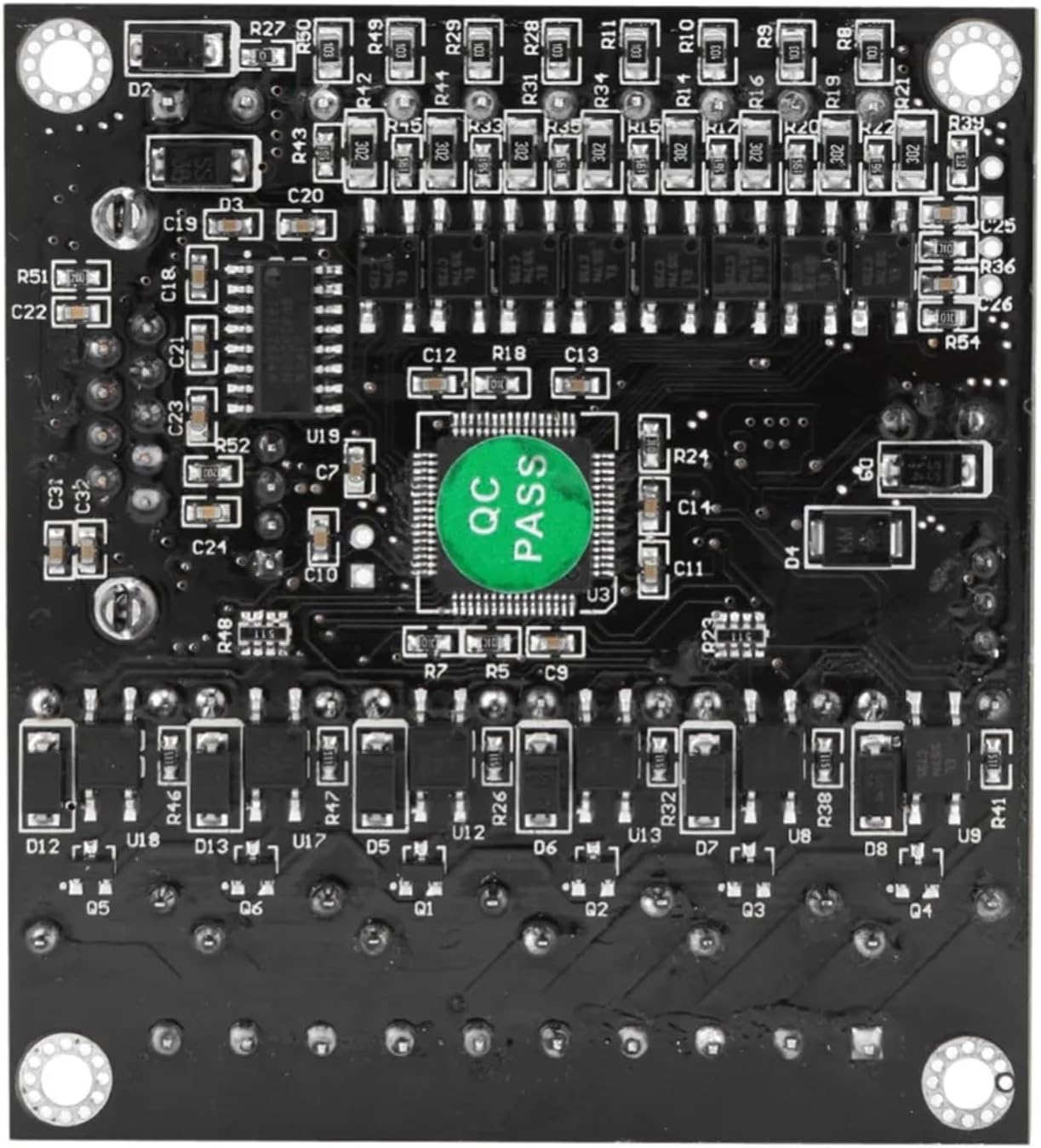

FX1N-14MR Board Relay Output Module 8 In 6 Out DC10-28V Power Supply Programmable Industrial Controller Only board

ModulesFeatures: The adopts strong anti-interference industrial-grade 32-bit MCU, and supports for GX Developer and GX Works2. It supports super encryption, as long as input the keyword 11111111 under state, there is no read function, only can download program in order that user program cannot be cracked. The board directly uses GX programming software for ladder diagram, written to the directly, can monitor online. Comprehensive and systematic anti-interference processing, power supply circuit has multiple anti-interference design and can work in adverse electromagnetic interfere environment. Widely used in all kinds of industrial automatic control, such as metallurgy, chemical, plastics, textile, food, packaging, printing, building materials, carpentry, central air conditioning, environmental protection equipment and industrial single process control equipment in industrial assembly line, various kinds of machine tools. Specifications: Model FX1N-14MR Output Type Relay Output Input Points 8 points Output Points 6 points Power Supply Voltage DC10-28V Memory Capacity 8000 steps High Speed Input 3K/AB phase High Speed Output No Connecting to Text Screen Support Connecting to Touch Screen Support Programming Software GX Developer or GX Works2 Operational Control Mode Store program repetitive scanning mode Input Output Control Mode Batch processing mode(when execute END command, input output refresh command,with pulse function) Programming Language Relay mode+stepper ladder diagram mode(or SFC) Ladder Diagram Programming Software GX-Developer Program Memory Program Capacity,Form Buit-in 8K steps EEPROM(no need storer battery support) Command Type Sequence Control Command 27 Step Ladder Diagram Command 2 Basic Apply Command 102 Operation Processing Speed Basic Command 0.15-0.5us/command Apply Command 0.5~10us/command Input Output Points Input Points Input: opto-isolatorX000~X17(octal number)All input points can be set filter time 0-255mS by software Output Points Relay Y00-Y15(octal number) Auxiliary Relay Normal Use M0~M383 384 points Hold Use (EEPROM Hold) M384~M1535 1152 points Special Use M8000~M8255 256 points State State Use (EEPROM Hold) S0~S9 10 points Hold Use (EEPROM Hold) S10~S999 990 points Timer(Delay Set ON) 100ms T0~T199 200 points(0.1~3,276.7 seconds) VR1: D8030VR2: D8031VR3: D8032 10ms T200~T245 46 points(0.01~327.67 seconds) 1ms accumulative T246~T249 4 points(0.001~32.767 seconds) 100ms accumulative T250~T255 6 points(0.1~3,276.7 seconds)EEPROM hold Counter 16-bit Add Mode C0~C15 16 points(0~32, 767 counter) 16-bit Add Mode(EEPROM Hold) C16~C199 184 points (0~32, 767 counter) 32-bit High Speed Dual Direction C200~C219 20 points(-2,147,483,648~+2,147,483,647) count 32-bit Add/Minus Dual Direction(EEPROM Hold) C220~C234 15 points(-2,147,483,648~+2,147,483,647) count High Speed Counter(EEPROM Hold) C235~C255 Data Register(use a pair as 32-bit) 16-bit Common Use D0~D127 128 points 16-bit Hold Use(EEPROM Hold) D128~D2047 1920 points 16-bit Special Use D8000~D8255 256 points 16-bit Modify Address V0~V7, Z0~Z7 16 points Pointer JAMP, CALL Branch Use P0~P127 128 points Master Control Use N0~N7 8 points Constant Decimalism (K) 16-bit: -32,768~+32,76732-bit: -2,147,483,648~+2,147,483,647 Hexadecimal (H) 16-bit: 0~FFFF32-bit: 0~FFFFFFFF Package Includes: 1Pc x Controller==========Model Number : FX1N-14MRMotor Type : MotorType : Programmable Control BoardModel : ModuleKeywords : RelayType 2 : ControllerType 3 : ModuleProduct : Industrial Control Module
