| Management number | 216416758 | Release Date | 2026/04/19 | List Price | $13.60 | Model Number | 216416758 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

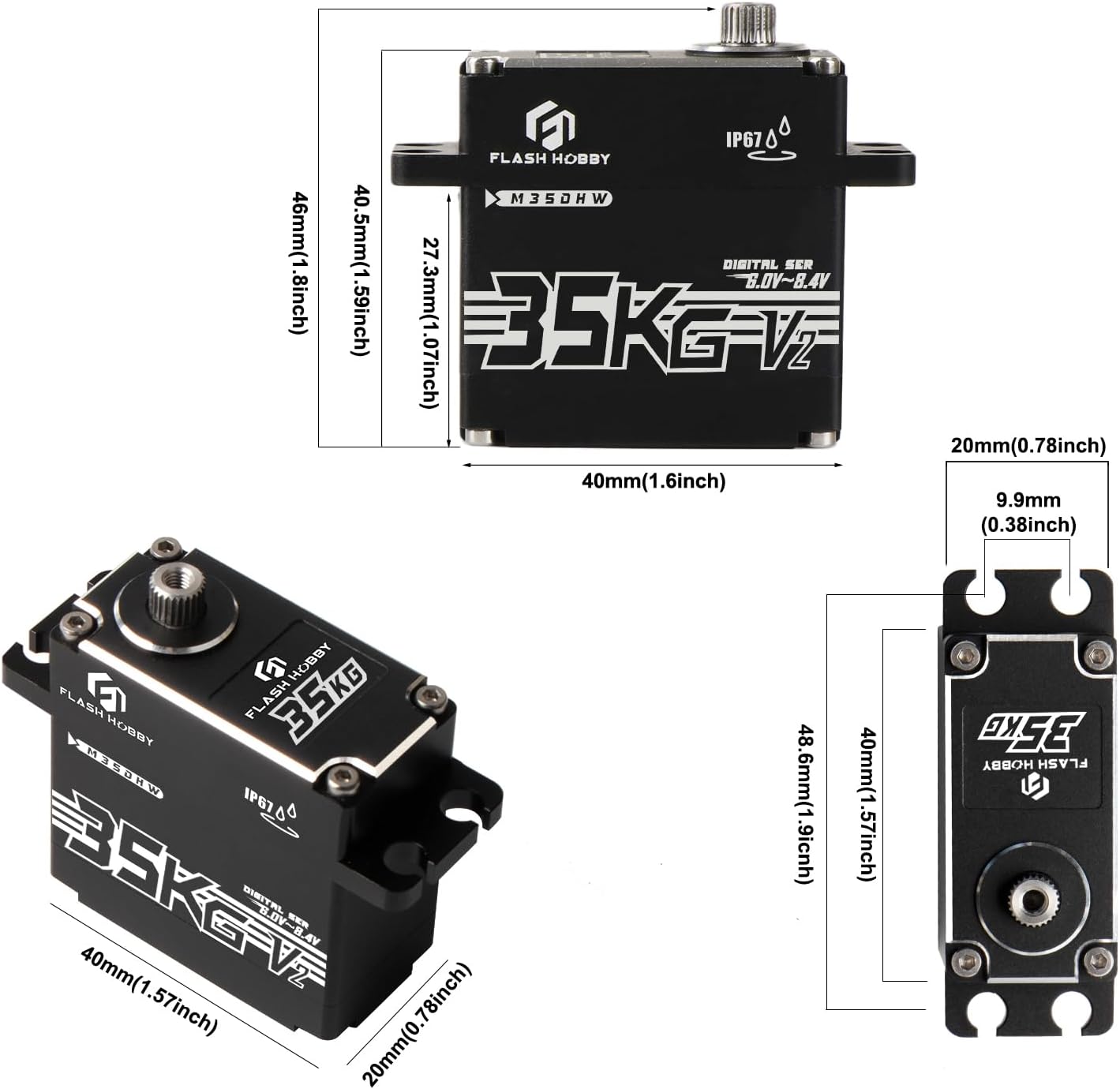

Product Description: 30DHW-V2: Operation Travel: 60°±5 Limit angle: 180°±1 Torque/Speed: 27kg-cm/0.17sec/60° at 6.0V,30kg-cm/0.12sec/60° at 7.4V,32kg-cm/0.10sec/60° at 8.4V 35DHW-V2: Operation Travel: 60°±5 Limit angle: 180°±1 Torque/Speed: 28kg-cm/0.2sec/60° at 6.0V, 31kg-cm/0.14sec/60° at 7.4V, 35kg-cm/0.11sec/60° at 8.4V Specification: Control System: PWM Control (1500usec in the central point) Operation Voltage Range: 6.0V-8.4V Operation Temperature Range: -20C°~ +60C° Circle: >100w times without load Direction: Re-clock wise/ Pulse Travel 500→2500 μsec Diver type: Mos Drive Motor Type: DC Motor Potentiometer Type: Direct Drive Amplifier Type: Digital Control Dimensions: 40x20x40.50mm Weight: 80g (without servo horn) Dead band width: 1 usec Ball Bearing: 2BB Gear Material: Metal Gear Case Material: Aluminum Case Connector Wire Length: 300MMJR Plug Connector Wire Gauge: 22AWG Wire Info (Brown): Negative Wire Info (Red): Positive Wire Info (Yellow): S Single
| Item Weight | 4.2 ounces |
|---|---|
| Manufacturer | FLASH HOBBY |
| Product Dimensions | 1.59 x 1.57 x 0.79 inches |
| Manufacturer recommended age | 14 - 14 years |
