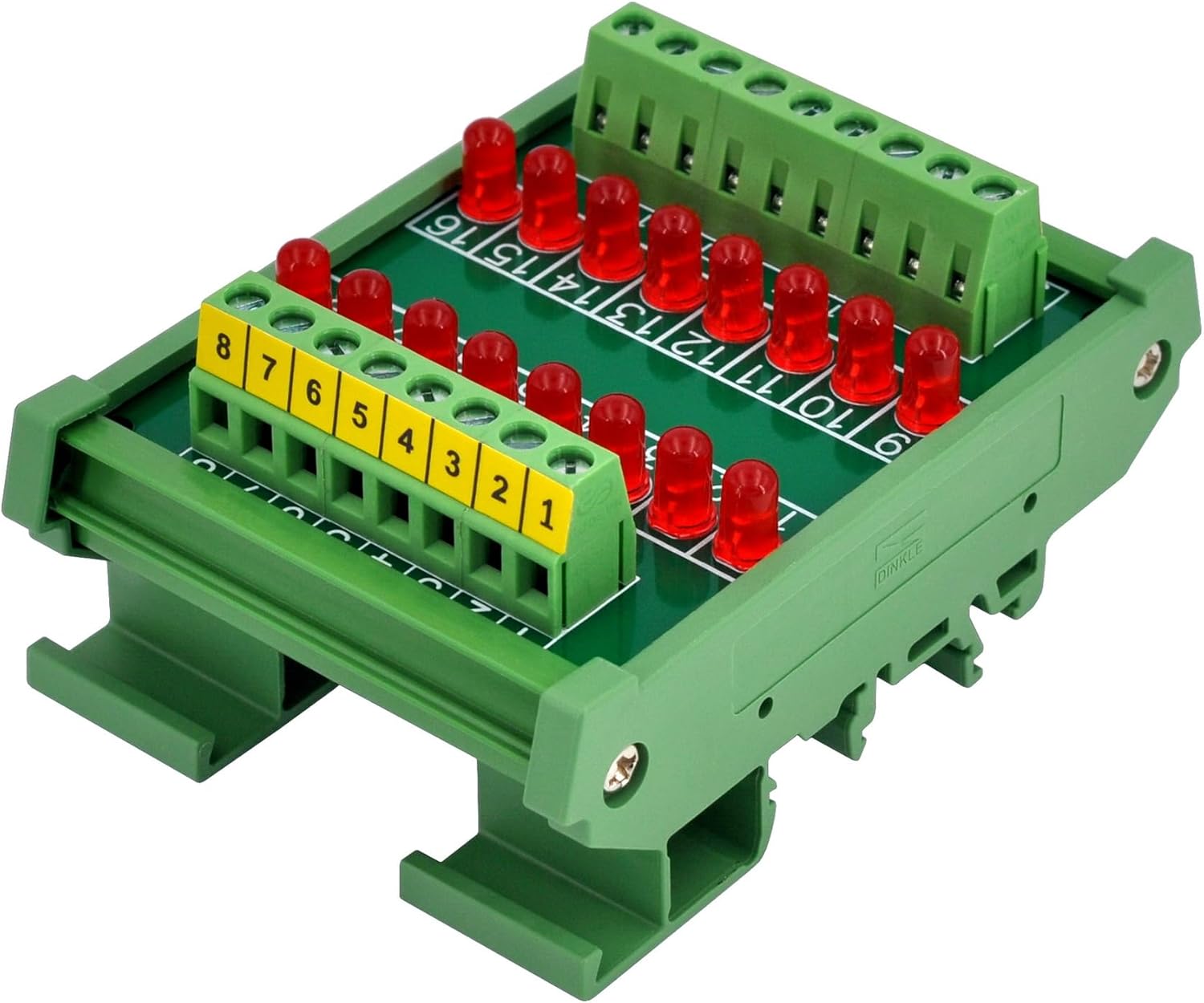

DIN Rail Mount 16 LEDs Indicator Light Module, Support 5~50VDC Common Positive/Negative (Red)
Product details
| Management number | 218152672 | Release Date | 2026/05/03 | List Price | $9.16 | Model Number | 218152672 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
16 Channels LED Indicator Light Module. Operating voltage: 5 ~ 50VDC. Diameter 5mm LEDs. Color - red. Support Common Positive and Common Negative control modes. Terminal Block: Pitch 5.0mm/0.197" screw terminal blocks. Wire range 26 to 12AWG / 2.5mm square. Strip length 7mm / 0.28" Screws - M2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass. FR-4 fiber glass PCB. High quality fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use. Drive current (one LED): At 5VDC: 0.3mA At 12VDC: 1mA At 24VDC: 2.2mA At 48VDC: 4.6mA
- 16 Channels LED Indicator Light Module.
- Operating voltage: 5 ~ 50VDC. Diameter 5mm LEDs. Color - red.
- Support Common Positive and Common Negative control modes.
- Terminal Block: Pitch 5.0mm/0.197" screw terminal blocks. Wire range 26 to 12AWG / 2.5mm square. Strip length 7mm / 0.28" Screws - M2.5, steel, Cr3+ Zn plated. Pin header and Cage - Brass. FR-4 fiber glass PCB.
- High quality fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.
| Color | Red |
|---|---|
| Model | D-1003T Series |
| Pitch | 5 Millimeters |
| Brand Name | OONO |
| Unit Count | 16.0 Count |
| Part Number | D-1003T Series |
| Manufacturer | CZH-LABS |
| Material Type | Brass, Copper, Glass, Nylon, fiber |
| Mounting Type | DIN Rail Mount |
| Connector Type | IDC, Screw |
| Number Of Poles | 16 |
| Number Of Contacts | 32 |
| Included Components | DIN rail mount indicator light module |
| Number of Positions | 16 |
