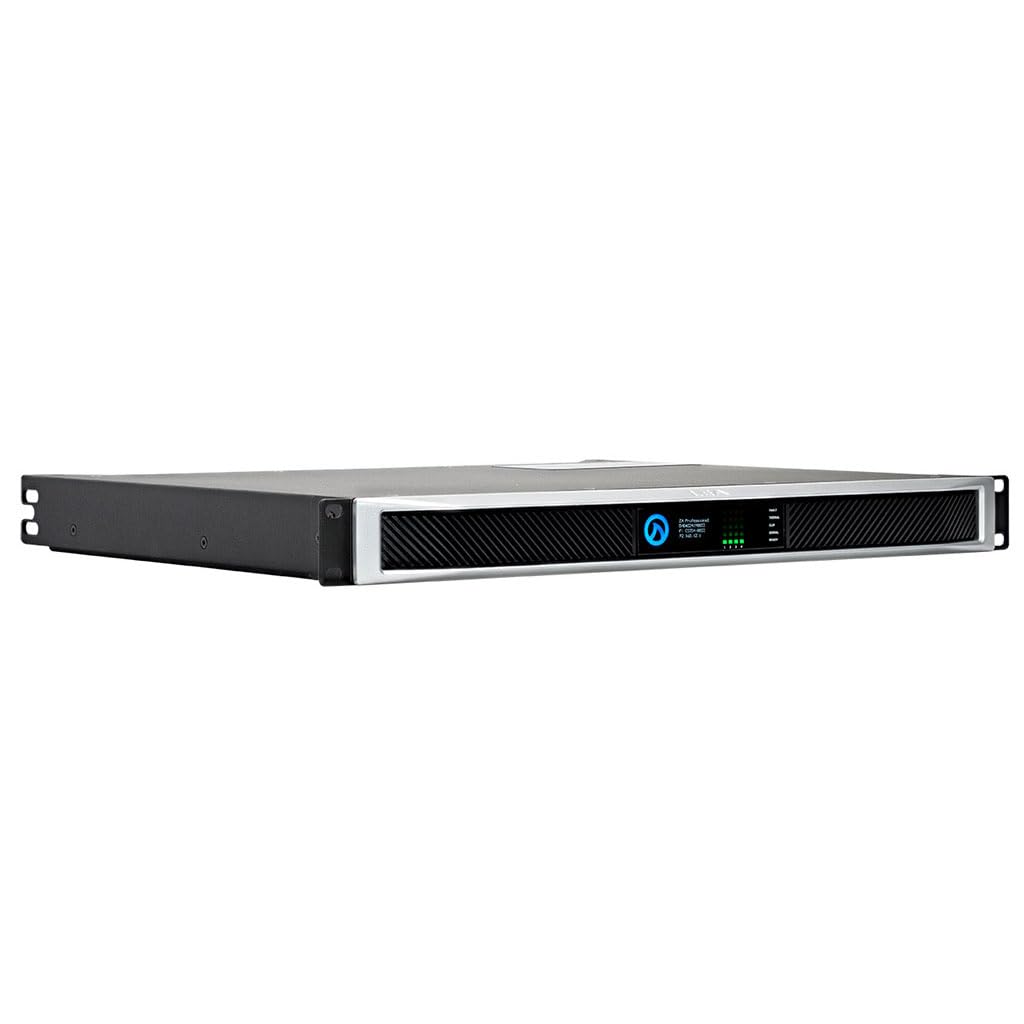

Connect 354D - 4-Channel IoT-Enabled Install Power Amplifier with Dante
Product details
| Management number | 218539126 | Release Date | 2026/05/03 | List Price | $996.90 | Model Number | 218539126 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The LEA Professional CONNECT 354D 4-Channel x 350 W IoT-Enabled Amplifier with Dante is an 4 channel amplifier with Dante and 350 watts per channel. The CONNECTSERIES is the world’s first Internet of Things- (IoT) enabled professional-grade amplifiers with built-in WiFi access point, ethernet and WiFi abilities.The 354D features direct HiZ or LoZ selectable by channel (70 V or 100 V). With three ways to connect, you can engage the built-in Wi-Fi access point, connect to the venue’s Wi-Fi, or use the FAST Ethernet to connect to any local area network via Cat5 or Cat6 cable.CLOUD NETWORKThe CONNECTSERIES is the first professional amplifier family to feature Cloud connectivity. Harness the power of the Cloud for remote control, monitoring, notifications, and more from any of your personal devices. Just connect your amp to a network and start commanding your systems. Register for your free LEA Cloud account at leaprofessional.cloudThe Network CONNECTSERIES also features analog inputs and Dante inputs and external I/O control for remote on/off and fault monitoring.FEATURES:Dante Inputs4 x 4 Dante at 96 kHz or 48 kHzWeb Browser-based UI works on any device with no software to downloadDirect LoZ and HiZ (70 V or 100 V) selectable per channelProprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel3 Ways to Connect: 1.) Built in WiFi Access Point 2.) Connects to existing WiFi network 3.) Local Area Network Ethernet connection96 kHz Analog Devices DSP with Input Routing, multiple 48 dB/Oct crossover filters, 4 Parametric EQ filters, user configurable speaker limiters, and real time load monitoringUniversal Switch Mode Power Supply with PFC. Operation from 100VAC – 240VAC +/-15%Analog fully routable inputsExternal I/O Port for Remote On/Off and fault monitoringHighly Efficient Class D Output Stage for low AC Current draw
- Web Browser-based UI – works on any device with no software to download
- Direct LoZ and HiZ (70V or 100V) selectable per channel
- Proprietary Smart Power Bridge allows user to bridge a channel to achieve double the power of that channel without sacrificing an amplifier channel
| UPC | 850011348529 |
|---|---|
| Model | CONNECT 354D |
| Voltage | 100 Volts, 70 Volts |
| Brand Name | LEA Professional |
| Part Number | CONNECT 354D |
| Manufacturer | LEA Professional |
| Output Power | 350 Watts |
| Mounting Type | Surface Mount |
| Item Dimensions | 23 x 20 x 4 inches |
| Package Type Name | Box |
| Specification Met | FCC |
| Number of Channels | 4 |
