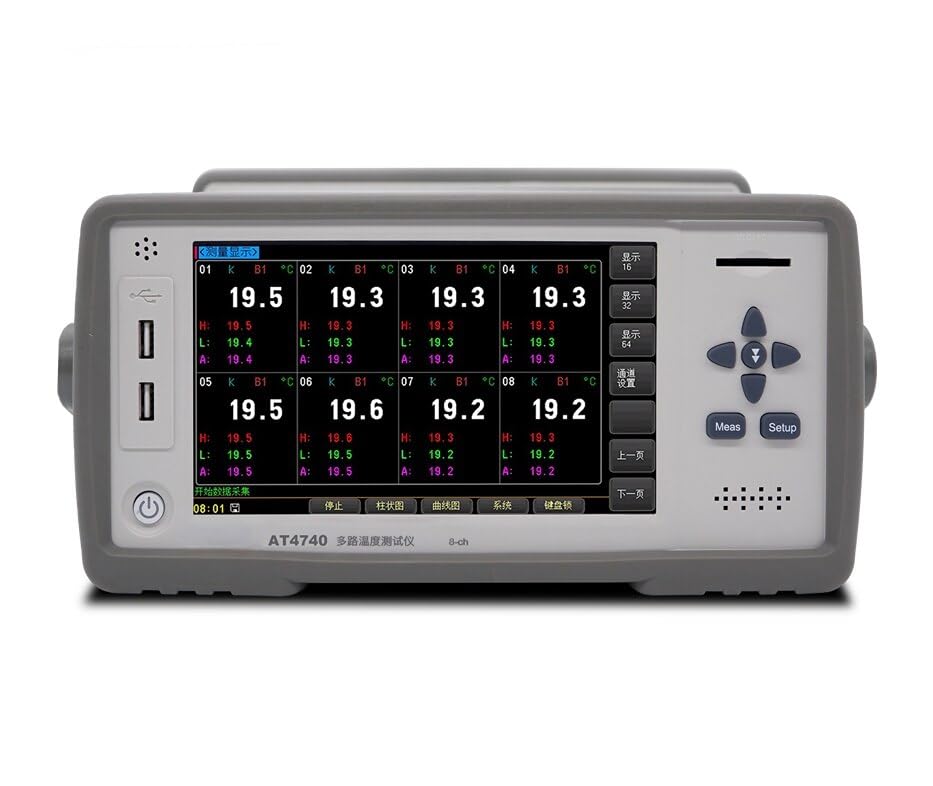

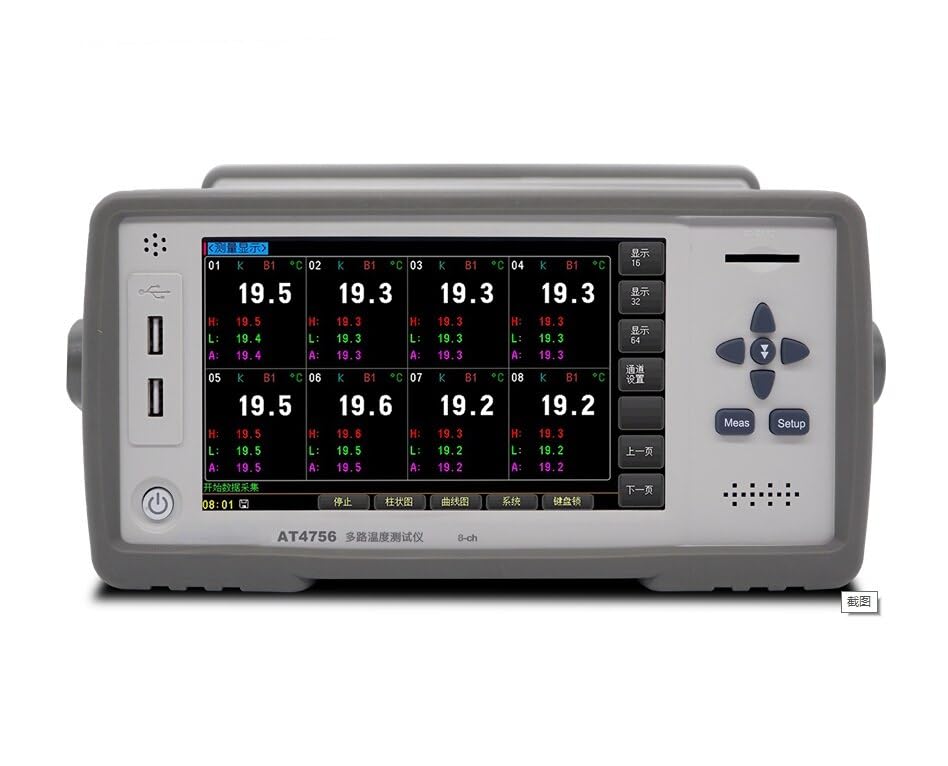

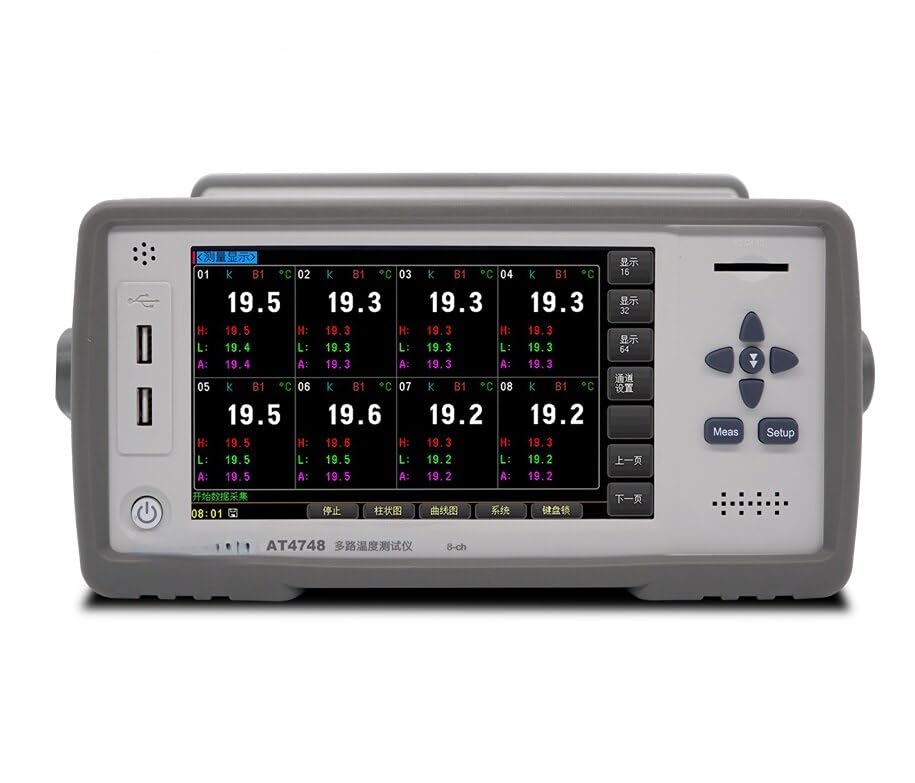

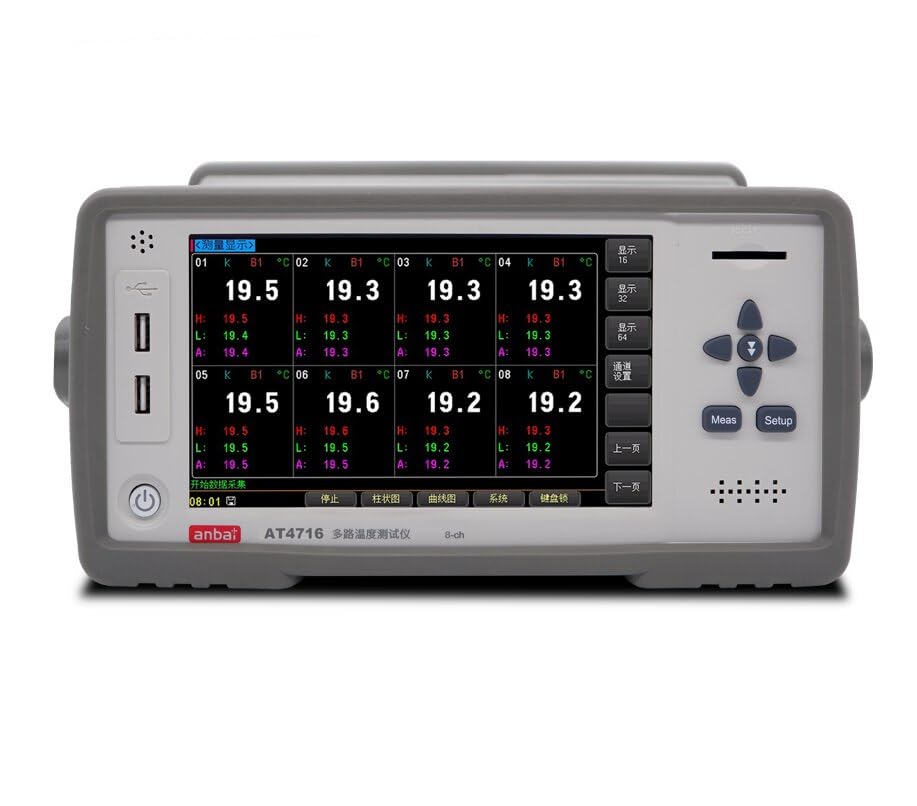

AT47XX 8-64CH Thermocouple Meter ±0.2°C Accurate Temperature Data Logger 350V Isolated Inputs for Industrial Process Monitoring and HVAC Applications

The AT47XX offers high-density temperature measurement, with models available supporting 8 to 64 isolated thermocouple inputs. It measures a wide range of types J, K, T, E, R, S, B, N thermocouples with excellent ±0.2% rdg accuracy. With rapid 500ms/channel scanning, the 7" color LCD touchscreen gives real-time visibility into temperature data. Robust 350V inter-channel isolation protects equipment from ground loops and noise. Flexible data handling includes on-board USB logging and PC software for long-term monitoring and analysis. Per-channel digital calibration ensures reliable, accurate measurements. Covering ranges from -200°C to 1300°C, the AT47XX brings research-grade multi-point temperature capabilities to industrial test and process monitoring applications. Its high channel density, fast sampling, and connectivity provide a versatile temperature measurement solution.

• High channel count - supports up to 64 thermocouple inputs for large-scale temperature monitoring.
• Isolated measurements - 350V channel-channel isolation protects equipment and enhances noise resistance.
• Wide range and high accuracy - measures from -200°C to 1300°C with ±0.2% accuracy. Reads most common thermocouple types.
• Intuitive interface - 7" color LCD touchscreen makes configuration and data monitoring easy.
• Rapid sampling - scans up to 500ms per channel for detecting quick temperature changes.
