15RPM AC Motor 10Kg.cm Synchronous Gear Motor CW/CCW Control Dual Bearing 115V 60Hz 10W 60KTYZ

This 60KTYZ synchronous gear AC motor has been used for many years in agitating beverage machines and low-speed turning appliances. Its performance is stable and reliable, and it is trusted by customers. It has the following technical features: (1) Rated voltage: AC 115Volts (2) Operating frequency: 60Hz (3) Output shaft speed: 60rpm/min (4) Rated power: 10 Watts (5) No-load current: ≤90mA (6) Output torque: ≥3Kg.cm (7) Low voltage start: 0.85Un (8) Direction of rotation: can be rotated clockwise or counterclockwise (9) Motor winding temperature rise: ≤70K (10) Insulation class: E class (11) Insulation voltage: 1500V/1min (12) Operating capacitance: 1uF/630V (13) Noise: ≤45dB, and no abnormal noise (14) Axial movement: ≤0.3mm (15) The output shaft bearing uses 2 ball bearings. (16) This synchronous motor provides 1 year After sales. (17) The motor can work continuously under 120V/60Hz, but shell will generate heat. It has been tested that at an ambient temperature of 82°F, when the motor naturally dissipates heat, the max shell temperature is 153°F. Please isolate and protect it during use. Don’t touch the shell to prevent burns.

• 115V/60Hz 15rpm/min low speed AC Synchronous Motor,CW/CCW Control, which can be rotated counterclockwise or clockwise by adjusting the wiring method.the motor lead wire is waterproofed at the outlet of the outer casing

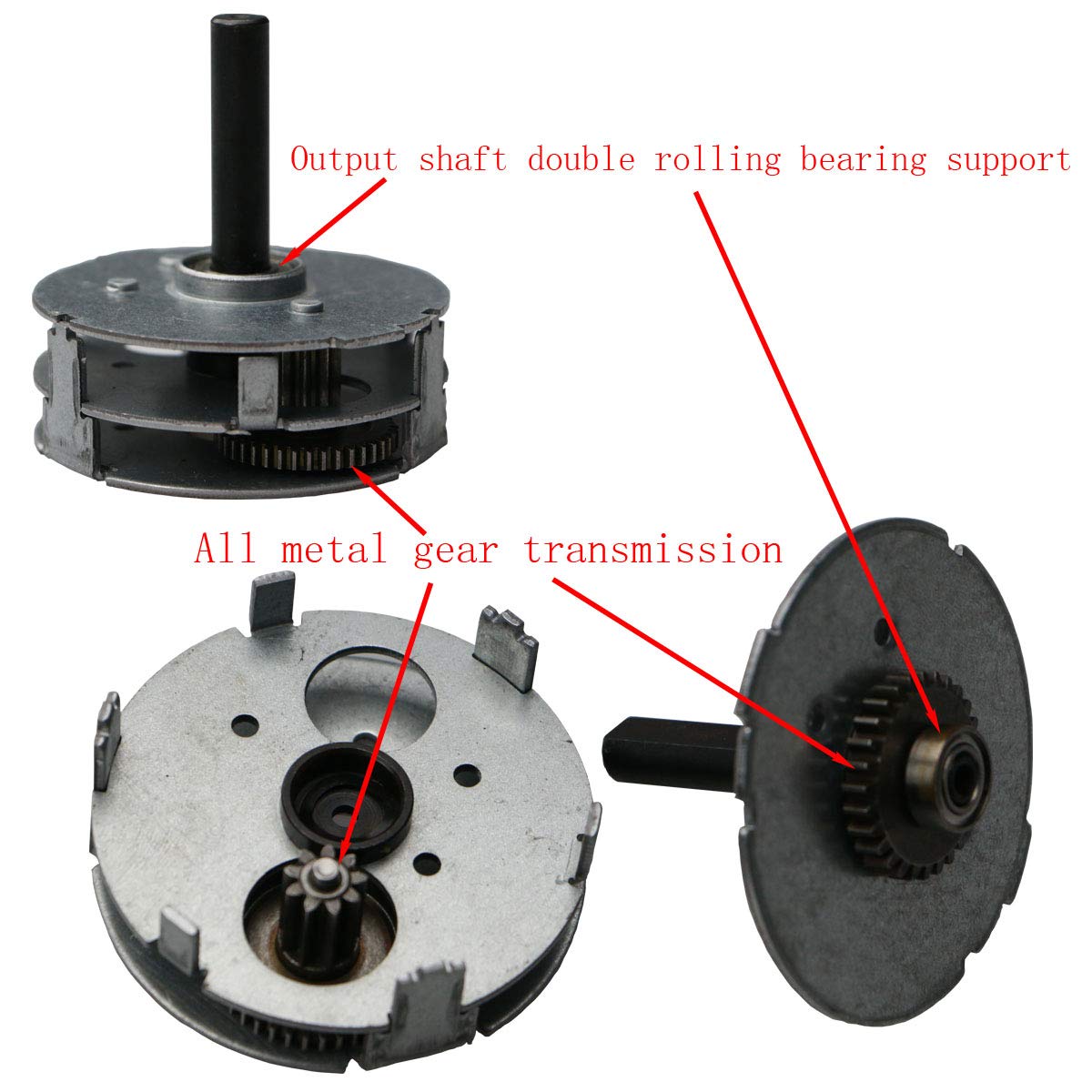

• The output shaft is supported by two ball bearings, the axial sway is less than 0.3mm, the noise is low and there is no abnormal noise, and the motor runs smoothly and reliably
• High torque of the motor: output torque ≥10Kg.cm, Good low-voltage starting performance:low-voltage start ≥98V,Low power consumption:rated power 10W
• The motor can work continuously.Special design of the motor, using UL-certified copper wire, winding temperature rise ≤70K. According to the test, when the ambient temperature is 82°F, the max shell temperature is 145°F,Don’t touch the shell
• This motor has been used in agitated beverage machines and low-speed machines for many years, and its performance is stable and reliable, and it is trusted by users
